(20) Remove Crankcase breather hose from valve

cover

(21) Remove the engine cylinder head cover.

(22) Remove the injector sensor wire at the con-

nector, and glow plug Connectors.

NOTE: The attachment point for the injector sensor

wire at the injector is not a connector. The connec-

tor is located in the wire 4 to 6 inches away from

the injector.

(23) Remove injector fuel lines from injectors to

pump.

(24) Remove fuel injectors with tool VM-1012A

(Fig. 28) and (Fig. 29) Refer to Group 14, Fuel Sys-

tem.

(25) Remove rocker retaining nuts (Fig. 30).

(26) Remove rocker assemblies. Place them on a

bench in the same order as removed.

(27) Remove the push rods and place them on a

bench in the same order as removed.

(28) Mark cylinder heads to ensure installation in

there original position.

(29) Remove the engine cylinder head bolts with

special tool VM-1018 and VM-1019.

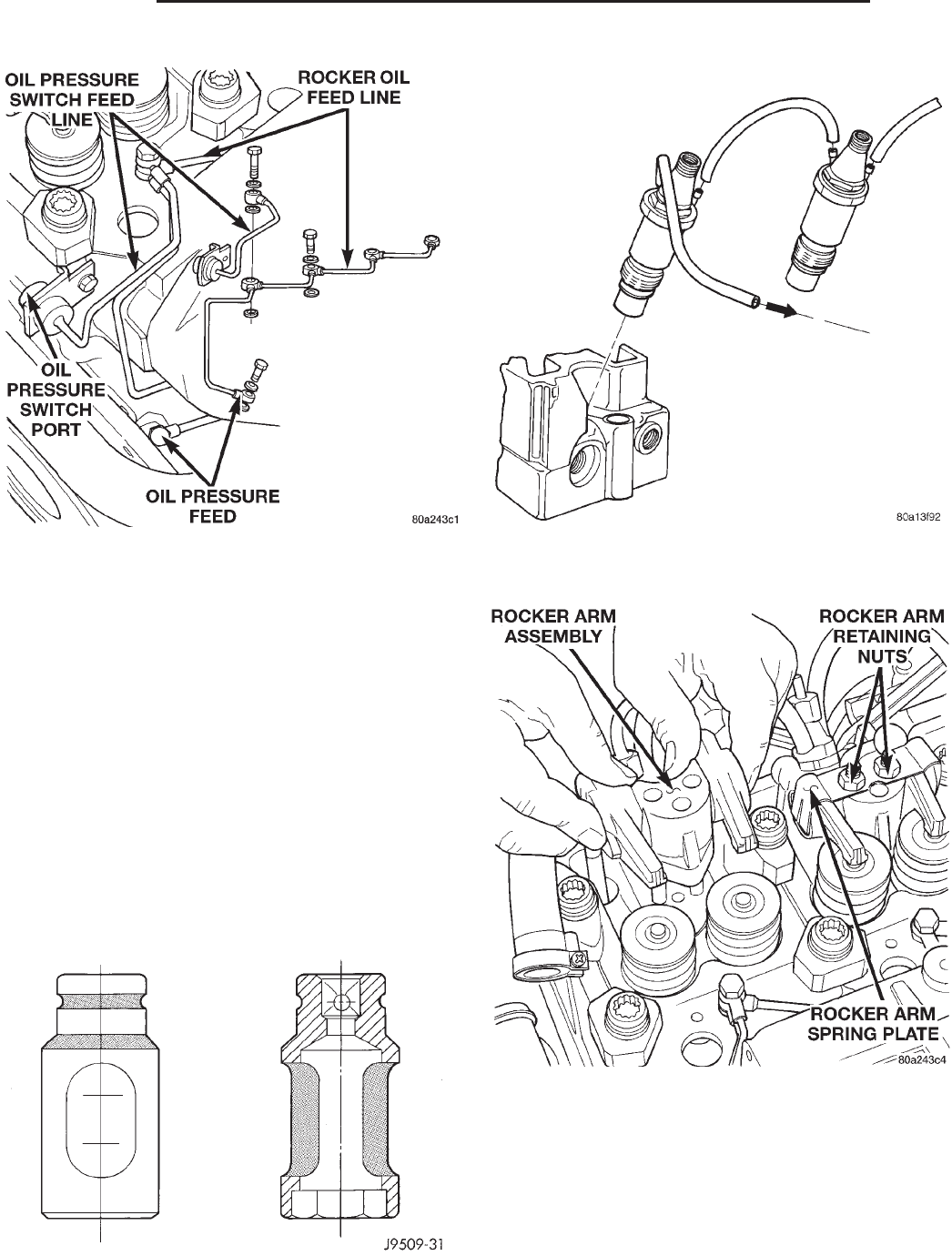

Fig. 27 Rocker Arm Oil Feed Lines

Fig. 28 Fuel Injector Tool VM-1012A

Fig. 29 Fuel Injector

Fig. 30 Rocker Arm Retaining Nut

9 - 50 ENGINE NS/GS

REMOVAL AND INSTALLATION (Continued)
